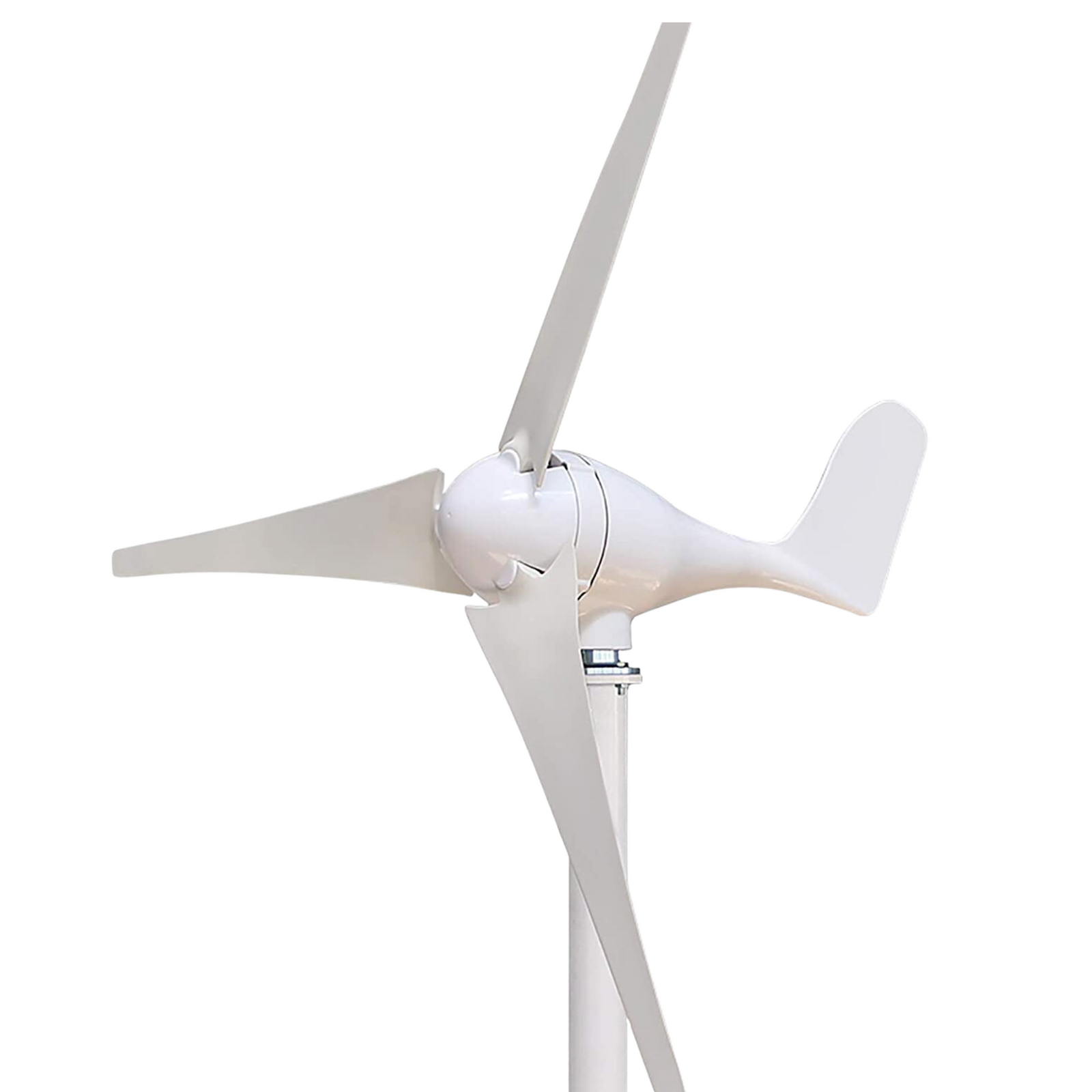

700W 24V Wind Turbine Generator 3 Blade - Digital Hybrid Wind/Solar Controller!!

$712.78
RRP $849.99
SAVE $137.21 (16%)
In Stock


Calculate Shipping


DESCRIPTION

Here it is! 700 Watt System Complete with Wind / Solar Hybrid Digital Controller - Genuine KASA Series IV Next Gen Wind Turbine Technology with patent tail axis rotation. Our wind turbines will turn facing the maximum amount of wind 100% of the time. Our unique design ensures reliable and effecting power generation guaranteed 24/7

Guaranteed to Generate Electricity Power even at the low wind speeds of 7km/hr ( similar to human walking speed ). Need to charge a 24V battery from 50AH up to 250AH - No problems as long as you have some wind!! Even if you do not have any wind our hybrid controller will allow you to connect to wind power or sun power. This means you can connect to any 24V solar panel into our hybrid controller to produce electricity even when there is no wind (as long as you connect our controller to a 24V solar panel - solar panel not provided)

FEATURES:

  • FREE Hybrid Digital Controller Supplied with built-in over load protection means you can connect a 24V solar panel as well

  • 9 km/hr Low Start-Up Speed

  • Patent Tail Axis Rotation means the turbine rotates automatically

  • Turbine head facing the inward winds 100% of the time

  • Easy installation with flange fitting provided

  • High Strength Precision Blades for maximum efficiency

  • Permanent Magnet AC synchronized generator

  • Turbine Body is made from Aluminium alloy makes it strong, light, and rust proof

  • Two heavy-duty swivel bearings inside turbine

  • Light weight and portable

SPECIFICATIONS:

  • Rated Power 700W

  • Maximum Power 730W

  • Rated Voltage 24V

  • Wheel diameter 1.80m

  • Start-up wind speed 9 km/hr

  • Rated wind speed 47 km/hr

  • Survival wind speed 165 km/hr

  • Net Weight 16 kg

  • No. of blades 3

  • Working temperature -40 to +80 degrees celcius

  • Design Life 20 years

APPLICATIONS:

  • Home

  • Caravan

  • Camping

  • Boat

  • Telecommunications

  • Street lights

INSTRUCTIONS:

  • Read Installation Manual Supplied before installing (very important if you are new to this technology)

  • Do not install on rainy or windy days

  • Connect the 3 wires from wind turbine together to fuse them and do not hand spin before final connection. The wind turbine produces electricity and should not be connected until controller and battery are connected first.

  • Connect Controller to Battery before anything else. Only after you have connected controller to battery are you allowed to connect wind turbine

  • Do not use wind turbine without controller / battery as electricty is produced which needs to be stored

  • Do not install blades upside down otherwise bolts will not fit into turbine hub (see install pictures)

IN THE BOX:

  • 700W 24V KASA Series IV Wind Turbine

  • FREE Hybrid Digital Controller included means you can connect solar panel (optional)

  • Installation Flange with bolts included

  • Installation and assemble manuals for both wind turbine and controller

(650-KS700WT24V)

SKU 650-KS700WT24V
Brand KASA
