Electric Mobility Scooter Portable Lithium Battery 10 Inch Tyres Elderly Aid Smart E-Scooter

KASA Electric Mobility Scooter is a convenient and safe solution for those seeking independence. It features simple, intuitive controls with a speed of up to 9km/h, a range of 20-25km, and a battery level meter. The scooter is equipped with flat-free tires and a front storage basket for belongings. It is also designed for comfort with a thickly padded seat, armrests that move outwards and pivot, and a swiveling seat for easy entry and exit. KASA Electric Mobility Scooter also includes electromagnetic braking, anti-tip wheels, and reflectors for safety, and has a weight capacity of 120kg. The scooter is easy to assemble and disassemble for transportation, making it a smart choice for everyday use.


FEATURES:

Convenient and Comfortable:
The KASA 4-wheel mobility scooter provides a convenient and comfortable mobility solution for users. With its compact size, it can easily maneuver over smooth indoor and outdoor surfaces, such as concrete, pavement, tile, and carpeting. The scooter is also equipped with a front-mounted storage basket for carrying daily essentials.
Safe and Durable:

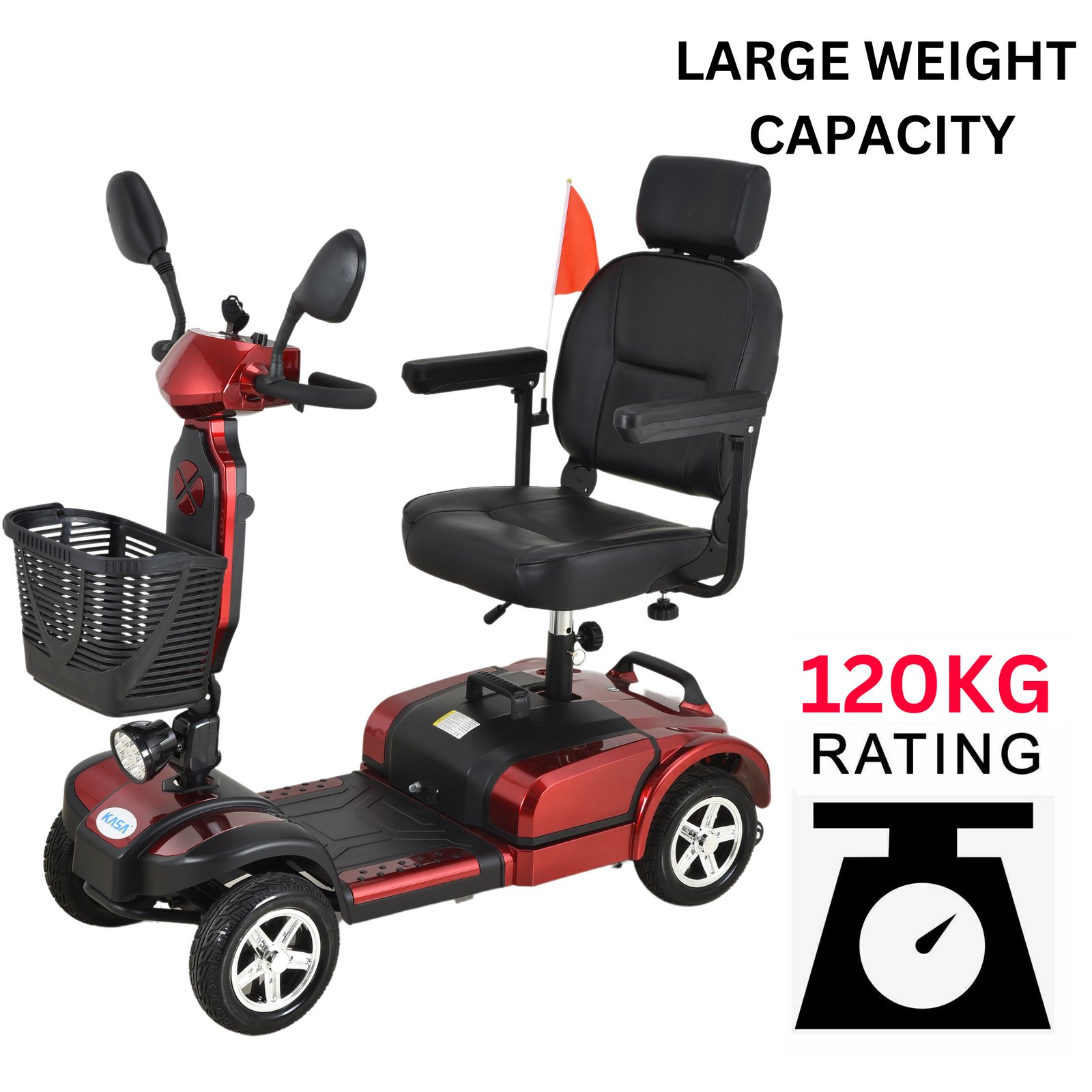

The scooter is designed to support up to 120KG, ensuring a safe and stable ride for users. Its 10” flat-free tires are non-marking and engineered for durability and safety, providing users with peace of mind.
Easy to Transport:
When not in use, the KASA mobility scooter can be easily disassembled, making it simple to transport in standard-size vehicles. The folding tiller and removable seat ensure that each section is easily portable.
Control Panel:
The control panel located on the tiller console allows users to control various aspects of the scooter, including the maximum speed, direction, headlight, and warning tone. The display also features a color-coded battery life indicator, allowing users to check the status of the battery at a glance.

Long Cycle Life Lithium-ion battery:
For the best experience, this Mobility Scooter has a longer cycle life than other rechargeable batteries, meaning they can be recharged and discharged many more times before they lose their capacity and Runs way more Distance than other cheaper Batteries.

SPECIFICATIONS:

• Color: Red
• Motor: 24V
• Power: 350W
• Speed: 0-9KM/H
• Wheel: 10inch
• Charger: DC 24V 2A
• Controller: 24V 50A
• Driving distance: 25KM
• Battery: 24V 20AH Lithium Battery
• Height above the ground: 92MM
• Braking mode: Electromagnetic braking
• Maximum climbing force: 12°
• Unfolded size:  125*51*97CM (L*W*H)
• Folded size: 125*51*58CM (L*W*H）
• Packing size: 1250*530*580(L*W*H)
• HIGH BACK Seat Cushion
• High Head Rest
• Featuring a storage pocket behind the High back seat.

WEIGHT:

• Total Net weight: 36KGS
• Total Gross Weight: 40KGS
• Total Capacity weight: 120KGS
• Bare Scooter: Approx. 23KGS
• Weight of seat: Approx. 7KGS
• 20AH lithium battery: Approx. 5.5KGS

PACKAGE INCLUDES:

• 1x Electric Mobility Scooter Model X04
• 1x DC 24V 2A Charger
• 1x 24V 20AH Lithium Ion Battery
• 1x Pair of Reflectors
• 1x Red Visibility Flag
• 1x Basket
• 1x Users Manual
• 1x HIGH BACK Seat Cushion ( Executive Extra Comfort Cushion )
• 1x High Head Rest ( Executive Extra Comfort Cushion )



OPTIONAL EMERGENCY SCOOTER ASSIST
For just an extra $30 per year, knowing you have someone to call 24/7 offers real security and peace of mind. For Victoria ONLY. Ask us for more details

Discover the benefits of Emergency Scooter Assist
Have peace of mind knowing that if your mobility scooter breaks down, or you have an accident, the emergency breakdown service will provide you with a worry-free experience

If you’re out and about, a technician will meet you at your location and attempt minor on-site repairs. If they can’t fix the issue, they will organize a wheelchair-accessible taxi to take you home (up to $60 per call out)

If you’re at home, they can attempt repairs like fixing spare parts, changing a flat tyre or minor mechanical repairs

Your subscription includes:
Support 24 hours a day, 365 days a year
Up to 8 service calls per year
Help with changing a flat tyre or fitting spare parts (if you have them with you) plus attempts at minor mechanical repairs
Subscription includes upto $60 per trip towards an accessible taxi to get you home, if the issue can’t be fixed on the spot
Cover for multiple mobility scooters

Please note the emergency assist is an extra service and is for VICTORIA ONLY. The cost for this extra service is $30 per year. Ask us how to apply!!

Cushion )


Warning: Always unplug the charger from the wall and the battery/electric mobility scooter when fully charged.

Warning: Do not leave the mobility scooter on charge overnight or with no one to monitor. A damaged battery may overnight and cause a fire.

WARNING



[ 1 ]

Brand: KASA

Product name: X04 Electric mobility scooter

Serial number: NA

This Scooter complies with the following standards:

1)    CE International Standards

2)    Import Permits under Australian standards:

             a)    Advisory notice that a thing is not a road vehicle

             b)    Road Vehicle Standards Rules 2019, Section 233

             c)    Advisory Notice Number NARV-2025-0008086

Standards applied to the device(s)

List any standards used in the manufacturing of the device, including:

• International Standards (ISO)
• Australian Standards (AS)
• Conformity Assessment Standard Orders (CASO)
• Medical Device Standard Orders (MDSO)

[ 2 ]

Scooter specifications

Maximum speed: 9KM/H
Maximum weight: 36KG

[ 3 ]

Before using this scooter, check the applicable local laws relating to your intended use of the scooter on

Roads, footpaths, shared paths, bicycle lanes and bicycle paths.

Safe riding

Tips on how to ride in traffic, plan the safest route for your ability and use bike lanes, shared paths and quieter roads with lower speeds.

[ 4 ]

WARNING! Follow these safety instructions to reduce the risk of fire, explosion and electric shock.

1) Only use batteries and chargers supplied or recommended by the manufacturer

2) Battery Model details and number:  18650 13S4P & 18650/13S8P

3) Maximum charging time this scooter should be charged for: 5-6 hrs

4) Charge your scooter and batteries in an open area away from combustible and highly flammable materials, such as beds, sofas and carpets.

5) Store and charge your scooter and batteries in a cool, dry place away from direct sunlight.

6) Store and charge your scooter and its batteries away from doorways.

7) Allow time for batteries to cool before recharging or storing.

8) Keep batteries away from moisture, heat and impact.

WARNING! Modifying or tampering with your scooter can result in a fire, explosion or electric shock.

DON’T:

1) Modify or tamper with any component of this scooter.

2) Charge this scooter for more than the recommended charge time.

3) Leave charging batteries unattended or on charge overnight

4) Use or charge a damaged battery.

5) Use or charge this scooter if it is damaged.

6) Use batteries or scooter that are overheating or showing signs of failure, such as swelling,leaking or venting gas.

7) Buy or use a scooter or battery that has been altered or modified

Each consignment is accompanied with a document with an indication that:

The package contains lithium ion cells or batteries

The package must be handled with care, and that a flammability hazard exists if the package is damaged; special procedures should be followed in the event the package is damaged, to include inspection and repacking if necessary

Remarks

The equipment must be equipped with an effective means of preventing accidental activation.Cells have been protected so as to prevent short circuits and have been equipped with an effective means of preventing accidental activation.

[ 5 ]

Do not attempt to repair your damaged scooter, take it to a qualified repair person. For further information on service and repair of your scooter or battery please contact the manufacturer

Preferred Contact Method:

Kasa Factory

[ 6 ]

WARNING! Fires involving lithium-ion batteries can occur rapidly and can be violent, involving toxic smoke and vapours, flames, and molten projectiles.

1) If your scooter or battery emits sparks, smoke or flames, evacuate the area and call Triple Zero (000).

2) Close doors if safe to do so.

Warning signs include:

1) Pungent odours

2) Discolouration, blistering, bulging, or swelling of the casing

3) Leaking electrolyte

4) Heating up and becoming extremely hot to touch

5) Abnormal popping, hissing or crackling sounds, smoke, and fumes

Never touch a swollen or ruptured device or battery with bare hands.

Seek urgent medical assistance if anyone has been exposed to spilled electrolyte, flying debris, smoke or vapours, or flames.

Make sure you know what to do if your device or battery is smoking or on fire:

http://fire.nsw.gov.au/batteries/what-to-do

[ 7 ]

For scooter where the battery can be separated from the scooter

1) Safely separate your scooter battery for disposal by following these instructions:

How to safely separate battery

To safely handle and store lithium batteries, always store them in a cool, dry place away from direct sunlight and heat sources, and never expose them to extreme temperatures or damage. Ensure terminals are protected from short circuits, and if you encounter any signs of damage or abnormalities, discontinue use and dispose of them properly.

WARNING: Do not dispose of this scooter or components of this scooter in household or kerbside garbage bins.

When disposing of this scooter or components of this scooter, check the applicable local waste and disposal laws.

epa.nsw.gov.au/safe-battery-recycling

[ 8 ]

Other important safety information

The battery should not be opened, destroyed or incinerate, since they may Leak or rupture and release to the environment the ingredients that they Contain in the hermetically sealed container.
Do not short circuit terminals, or over charge the battery, forced
Over-discharge, throw to fire.
Do not crush or puncture the battery, or immerse in liquids.
The battery may explode or cause burns, if disassembled, crushed
Exposed to fire or high temperatures. Do not short or install with incorrect polarity

Applicable Standards

• EN ISO 149712019
• EN ISO 15223-12021
• EN ISO 20417: 2021
• EN ISO 10993-1:2020
• EN ISO 10993-5:2009
• EN ISO 10993-10:2023
• EN ISO 10993-23:2021
• EN 12184:2022
• EN 60601-1
• EN 60601-1-2:2015/A12021
• EN 62366-1 :2015/A1 :2020

[ 9 ]

Hazards Summarizing

Danger sort

[ 9.1 ]

Routes of entry

I. Eyes and Skin: When leaking, the electrolyte solution contained in the battery irritates to ocular tissues and the skin

2. Inhalation: Respiratory (and eye) irritation may occur if fumes are released due heat or an abundance of leaking batteries.

3. Ingestion: The ingestion of the battery can be harmful. Content of open battery can cause serious chemical burns of mouth, esophagus and gastrointestinal tract.

[ 9.2 ]

Health harm

Exposure to leaking electrolyte from ruptured or leaking battery can cause

1. Inhalation: Burns and irritation of the respiratory system, coughing, wheezing, and shortness of breath.

2. Eyes: Redness, tearing, burns. The electrolyte is corrosive to all ocular tissues.

3. Skin: The electrolyte is corrosive and causes skin irritation and bums.

4. Ingestion: The electrolyte solution causes tissue damage to throat and gastrointestinal track.

Environment harm: Not necessary under conditions of normal use.

Explosion danger: The battery may be explosive at high temperature (above 60°C) or exposing to the fire.

[ 9.3 ]

First Aid Measures

Skin contact: Not anticipated. If the battery is leaking and the contained material contacts the skin, flush with copious arnounts of clear water for at least 15 minutes.

Eye contact: Not anticipated. If the battery is leaking and the contained material contacts eyes, flush with copious amounts of clear water for at least 15 minutes. Get medical attention at once.

Inhalation: Not anticipated. If the battery is leaking, remove to fresh air. If irritation persists, consult a physician.

Ingestion: Not anticipated. If the battery is leaking and the contained material is ingested, rinse mouth and surrounding area with clear water at once. Consult a physician immediately for treatment.

[ 9.4 ]

Fire Fighting Measures

Unusual Fire and Explosion Hazards: Battery may explode or leak potentially hazardous vapors subject to: exposed to excessive heat (above the maximum rated temperature as specified by the manufacturer) or fire, over-charged, short circuit, punctured and crushed.

Hazardous Combustion Products: Fire, excessive heat, or over voltage conditions may produce hazardous decomposition products. Damaged batteries can result in rapid heating and the release of flammable vapors.

Extinguishing Media: Dry chemical type extinguishers are the most effective means to extinguish a battery fire. A C02 extinguisher will also work effectively.

Fire Fighting Procedures: Use a positive pressure self-contained breathing apparatus if batteries are involved in a fire. Full protective clothing is necessary. During water application, caution is advised as burning pieces of flammable particles may be ejected from the fire.

[ 9.5 ]

Accidental Release Measures

The material contained within the battery would only be released under abusive conditions. In the event of battery rupture and leakage, collect all the released materials that are not hot or burning in an appropriate waste disposal container while wearing proper protective clothing and ventilate the area. Placed in approved container and disposed accordin to the local re ulations.

[ 9.6 ]

Handling and Storage

Handling

1. Batteries are designed to be recharged. However, improperly charging a battery may cause the battery to flame. When charging the battery, use dedicated chargers and follow the specified conditions.

2. Never disassemble or modify a battery.

3. Do not immerse, throw, and wet a battery in water.

4. Should a battery unintentionally be crushed, thus releasing its contents, rubber gloves must be used to handle all battery components. Avoid the inhalation of any vapors that may be emitted.

5. Short circuit causes heating. In addition, short circuit reduces the life of the battery and can lead to ignition of surrounding materials. Physical contact with to short-circuited battery can cause skin burn.

6. Avoid reversing the battery polarity, which can cause the battery to be damaged or flame.

7. In the event of skin or eye exposure to the electrolyte, refer to Section 4, First Aid Measures.

Storage

1. Batteries should be separated from other materials and stored in a noncombustible, well ventilated, sprinkler-protected structure with sufficient clearance between walls and battery stacks. Do not place batteries near heating equipment, nor expose to direct sunlight for long periods.

2. Do not store batteries above 350C or below —200. Store batteries in a cool (about 20±50) in a long time, dry and ventilated area that is subject to little temperature change. Elevated temperatures can result in reduced battery cycle life. Battery exposure to temperatures in excess of 600C will result in the battery venting flammable liquid and gases

3. Keep batteries in original package until use and do not jumble them.

[ 9.7 ]

Exposure Controls/Personal Protection

Engineering Controls: Keep away from heat and open flame.

Ventilation: Not necessary under conditions of normal use. In case of abuse, use adequate mechanical ventilation (local exhaust) for the battery that vent gas or fumes.

Respiratory Protection: Not necessary under conditions of normal use. If battery is buming, leave the area immediately. During fire fighting fireman should use self- contained breathing, full-face respiratory equipment. Fires may be fought but only from safe fire fighting distance, evacuate all persons from the area of fire immediately.

Eye Protection: Not necessary under conditions of normal use. Use safety glasses with side shields if handling a leaking or ruptured battery.

Body Protection: Not necessary under conditions of normal use. Use rubber apron and protective working in case of handling a leaking of ruptured battery.

Protective Gloves: Not necessary under conditions of normal use. IJse chemical Activate Windows resistant rubber gloves if handling a leaking or ruptured battery.

Others: Use good chemical hygiene practice. Wash hands thoroughly after cleaning-up a battery spill caused by leaking battery. No eating, drinking, or smoking in battery storage area.

[ 9.8 ]

Stability and Reactivity

Stability: Stable

Conditions to Avoid: Do not heat, throw into fire, disassemble, short circuit, immerse in water or overcharge, etc.

Incompatibility: None during normal operation. Avoid exposure heat, open flame and corrosives.

Hazardous Polymerization: Will not occur.

Hazardous Decomposition Products: The battery may release irritative gas once the electrolyte leakage.

[ 9.9 ]

Toxicological Information

The battery does not elicit toxicological properties during routine handling and use. If the battery is opened through misuse or damage, discard immediately. Intemal components of cell are irritant and sensitization.

Irritancy: The electrolytes contained in this battery can irritate eyes with any contact. Prolonged contact with the skin or mucous membranes may cause irritation

[ 9.10 ]

Ecological Information

1. When properly used and disposed, the battery does not present environmental hazard.

2. The battery does not contain mercury, cadmium, or lead.

3. Do not let internal components enter marine environment. Avoid releasing to water ways, wastewater or ground water.

[ 9.11 ]

Disposal Considerations

1. Disposal of the battery should be performed by permitted, professional disposal firms knowledgeable in Federal, State or Local requirements of hazardous waste treatment and hazardous waste transportation.

2. The battery should be completely discharged prior to disposal and/or the terminals taped or capped to prevent short circuit. When completely discharged it is not considered hazardous.

3. The battery contains recyclable materials. Recycling options available in your local area should be considered when disposing of this product, through licensed waste Carrier.

Other Information

The information above is believed to be accurate and represents the best information currently available to us. However, this document makes no warranty of merchantability or any other warranty, express or implied, with respect to such information, and we assume no liability resulting from its use. Users should make their own investigations to determine the suitability of the information for their particular purposes. Although reasonable precautions have been taken in the preparation of the data contained herein, it is offered solely for your information, consideration and investigation. This material safety data sheet provides guidelines for the safe handling and use of this product; it does not and cannot advise on all possible situations, therefore, your specific use of this product should be evaluated to determine if additional precautions are required.

[ 10 ]

Business providing this information

KASA FACTORY

[ 11 ]

Publication date of document

26/12/2024
